But if you’re working on a machining project on your own, it’s important to know CNC machining cycle time and how to calculate it. Continue reading better understand the necessary calculations and when to use them.
CNC machining, or computerized numerical control, is a process where programmed computer software controls the movements of your production equipment. The technology takes a virtual design, often from a CAD program, and transforms it into a physical part made of the specific material you need, such as:
CNC machining replaces manual labor to create precise and unique parts, no matter your industry. Whether you’re in the automotive, aerospace, electronics, military, medical or security sector, CNC machining will likely benefit you. When you demand mass-produced pieces that meet specific requirements, CNC machining can develop and deliver accurate and precise solutions.
Learn More about CNC Machining Services
Understanding CNC machine cycle time will help you estimate machining costs and lower product lead times. How long will the operation take to complete? Does your budget align with the project? Will it be done in time for you or your customer? Knowing machining cycle times can also help you compare two or more different processes that will work best for a project.
The formulas used for calculating machining time are simple to incorporate into your daily operations, and many professionals program their calculators to have the appropriate CNC machining cycle time formula. However, depending on the type of CNC machining, like turning, milling or screw machining, cycle time calculation will differ, making the process a bit challenging. Fortunately, with a simple formula, you can make CNC machining simple.
Similar to calculating other times, the general formula for CNC machining is distance or length divided by rate or speed. When it comes to machining time calculation, the formula is as follows:
Depending on the project, you may need to replace millimeters with inches.
Let’s start with an example in inches with an expected goal of the following:
The time needed to drill the hole will result in decimal minutes you need to convert to seconds:
Once you know how long it will take to drill the hole, you will want to determine the feed rate in inches per minute (IPM), which means you have to calculate the spindle RMP and calculate the feed rate in inches per minute, as most handbooks have feed in inches per revolution (IPR).Then, because speed recommendations are often provided in surface per minute (SFM) calculations, you will need the following two formulas to help you finish the calculations:
Depending on the tool, the feed rate may be in “per tooth,” which we will dive into when talking about CNC milling machining time calculation. In that case, the formula would be the following:
It’s simple to apply these formulas to many operations — unless the diameter changes during the machining process. For example, if you’re working on a project that requires multiple passes, the constant surface speed will cause the spindle speed in revolutions per minute to change in relation to the diameter. Therefore, you will need to calculate a new RPM and IPM feed rate for every turning pass.
While that is the general formula, there are differences between milling and turning machine calculations.

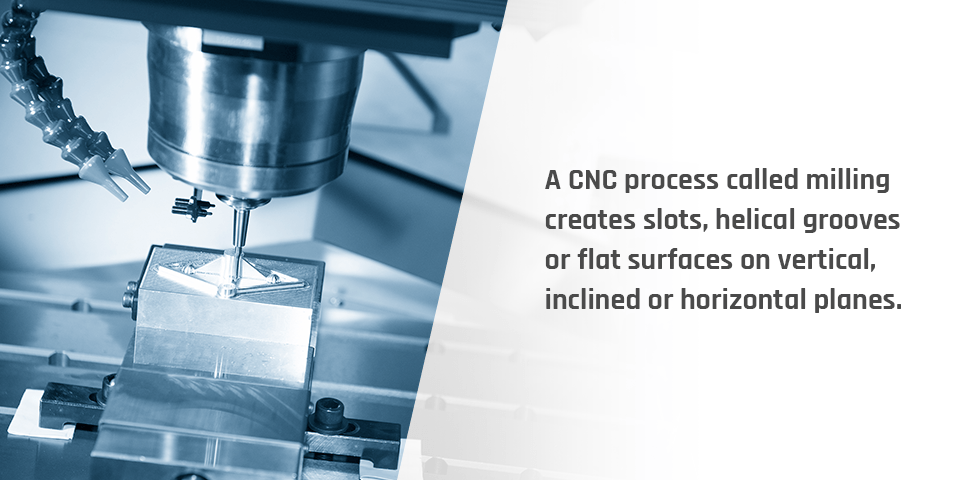

A CNC process called milling creates slots, helical grooves or flat surfaces on vertical, inclined or horizontal planes. In this case, the CNC machining time estimation may use a feed rate that’s per tooth, meaning you need to know the number of flutes, teeth or cutting edges on the specific tool you have.
When using the original formula for assistance — Machining Time = Length of Cut (mm) / Feed (mm per revolution) x Revolutions Per Minute — the calculation for CNC milling machining time equalsMachining Time = Length of Cut (mm) x Number of Passes / Feed (mm per revolution) x Revolutions Per Minute, with the specifications being:
Here, accuracy is key to obtain the best machining time estimate.
To calculate cycle time for turning, the formula is also based on the original. For example,Machining Time = Length of Cut (mm) / Feed (mm per revolution) x Revolutions Per Minute, with the specifications being:
The process of turning machining is when a single point tool on a lathe machine creates turned parts. To manufacture rotational — and often complex — shapes, the tool is fed linearly or perpendicular to the rotation axis of the piece, or the tool is on a specified path to create a rotational shape. There are two motions of cutting in the turning process — the primary is the rotation of the workpiece and the secondary is the feed.
